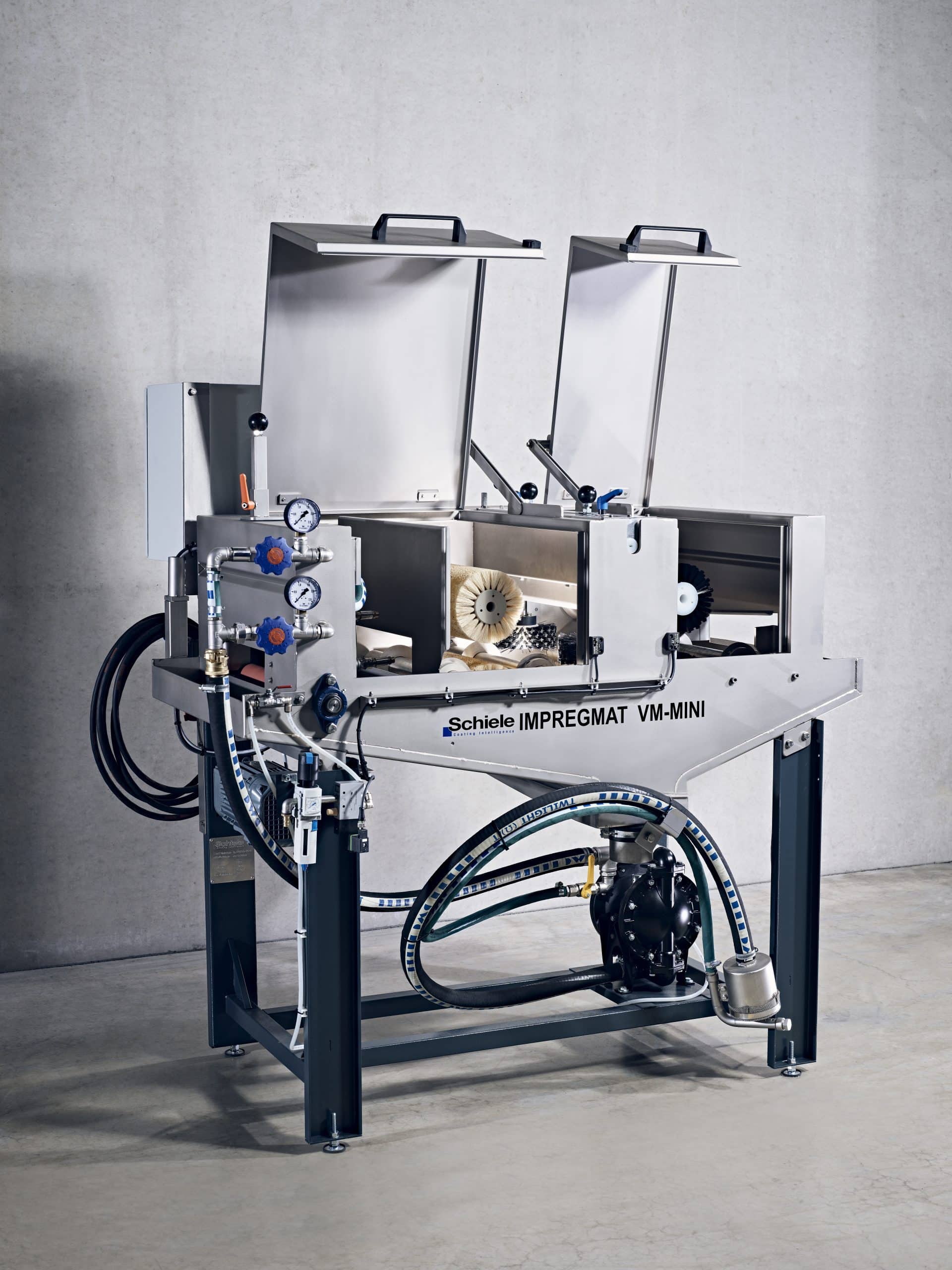

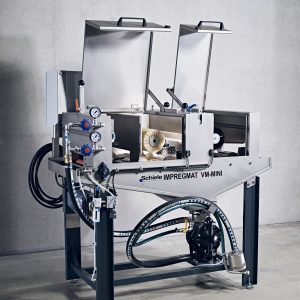

VM-Mini

Our entry-level model has a lot to offer. Designed for flexible use in the facade sector. The MINI reliably handles smaller batches and can paint the amount that an employee can paint by hand in 8 hours in 1 hour. And all this with consistent quality.

Properties

Made entirely of stainless steel, the MINI is easy to clean. All drive elements are external and protected against corrosion. The brush drive is not installed in the floor area, but at the sides and on top. Thus, no medium penetrates the drive mechanism during continuous operation.

Special flood nozzles ensure ideal saturation of all hard and soft wood areas. The 6 driven brushes work the coating medium carefully and evenly into the surface. The filtered material is returned to the circuit. Easy on the wallet.

Suitable for

Water-based impregnation media, salts, oils, stains and thin-layer varnishes, as well as solvent-containing materials with a viscosity of max 25 sec. DIN 4 jar.

Technical data

VM-MINI
Rate of Feedfix 20 m/min.
Electrical data400 V, 3 phases 50 Hz
Compressed air600 l/min. at 6 bar
Electrical input (max)0.86 kW
Length of basic machine1170 mm
Weight of basic machine420 kg
Working height900 mm +/-15 mm
Guiding railon the right
Flash point of the application mediaabove 55°C (no EX-protection!)
Workpiece width (max.)up to 200 mm
Workpiece height (max.)up to 40 mm
Workpiece length (min.)from 1,000 mm
Brushes6
